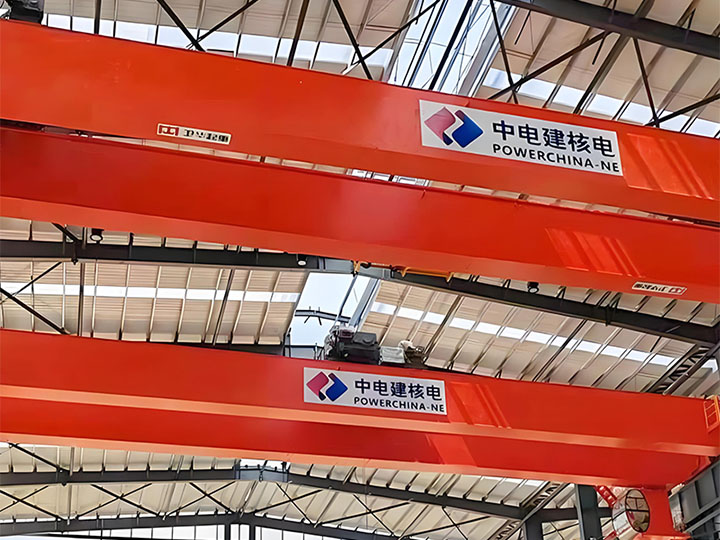

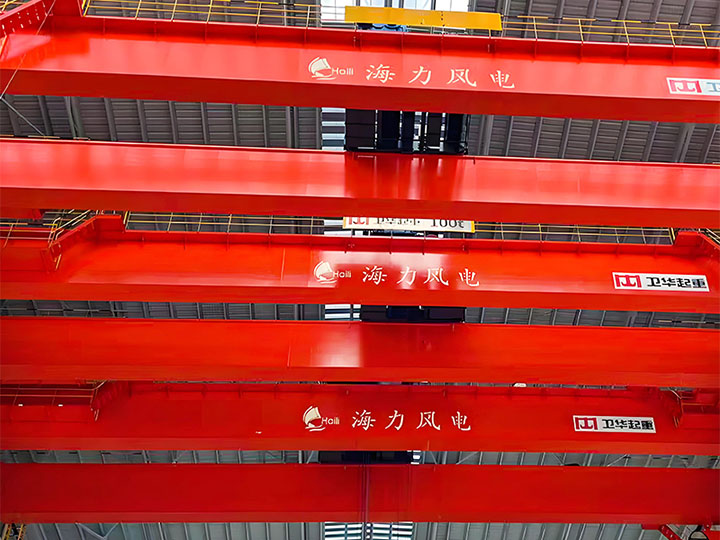

European double bridge crane is an important material handling equipment. It is also known as a double girder eot crane. It is widely used in industrial and mining enterprises, steel and chemical industries, etc. Users prefer to choose it for its simple structure, good stability, smooth operation, and large lifting capacity. The two main beams are the core component. Due to the high strength of steel, it has good bending, torsion, and shear strength. They are box beam structures, so main beams ensure the rationality of the whole equipment and also reduce it own weight. The entire bridge crane can move longitudinally on the track. Its electric trolley is located between the two main beams. It can move forward and backward with a lifting mechanism for lifting or lowering cargo.

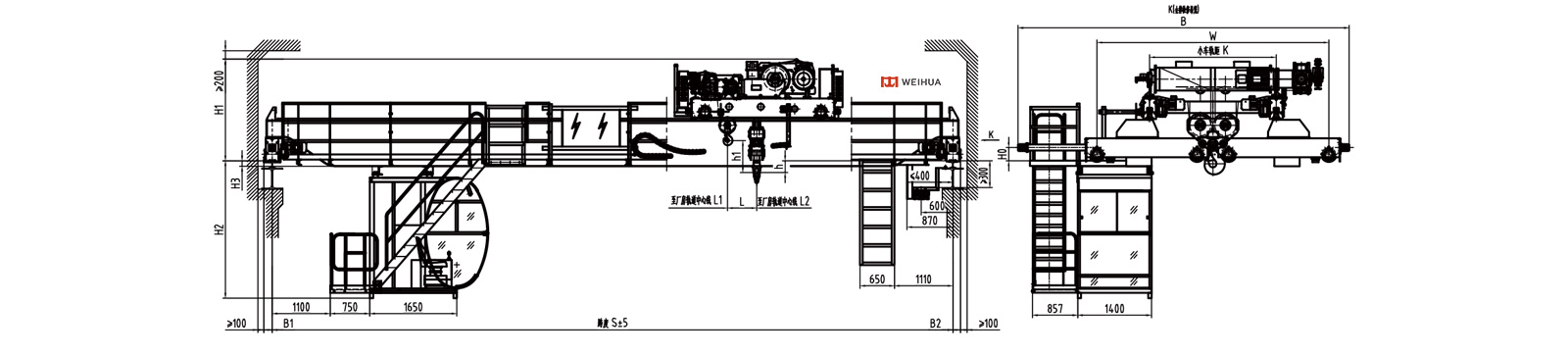

European Double Girder Bridge Crane is mainly composed of the bridge, traveling mechanism, trolley, cab, and electrical equipment. The trolley traveling mechanism is driven by a three-in-one reduction motor, and the frequency conversion system provides smooth acceleration and running speed. European double girder bridge cranes are widely used in warehouses, workshops, and material yards to assist in unloading or carrying heavy objects. Usually, European double girder bridge cranes/EOT cranes can not only achieve two-way movement, but also easily lift and lower heavy objects. When European double girder bridge cranes are used in explosive, flammable, or corrosive environments, special technical means are required to ensure operational safety.
Product Name | QDXX type Bridge Crane |
Cap | 3~100 ton, Customized |
Span | 4.5~31.5 meter, Customized |
Lifting Height | 3~30 meter, Customized |
Lifting Equipment | European electric trolley |
Work Duty | A5-A8 |
Power | Customized |
Temperature | -20℃~40℃ |
Space Utilization Rate | 90% |
Wheel Pressure | 10-50KN |
Operation Life | >30year |
Atmospheric Pressure | Standard Atmosphere Pressure |
