The LD type single-girder eot crane is a lightweight and compact lifting equipment, mainly composed of a main beam, end beams, electric hoist, trolley running mechanism, and electrical equipment. It is widely used in manufacturing, logistics and warehousing, steel plants, and other fields. This single-girder electric overhead crane features a compact structure, good rigidity, flexible operation, aesthetically pleasing design, and high safety and reliability. It is often used in conjunction with CD1 and MD1 electric hoists.
Its lifting capacity typically ranges from 1 ton to 32 tons, with a span of 2.5 meters to 31.5 meters, and a lifting height of 3 meters to 50 meters. Weihua Group is one of the world's leading manufacturers and suppliers of single-girder electric overhead cranes, and can customize suitable overhead cranes according to your factory's specific needs, enabling smooth horizontal movement and precise vertical lifting.
LD Type Single Girder EOT Crane

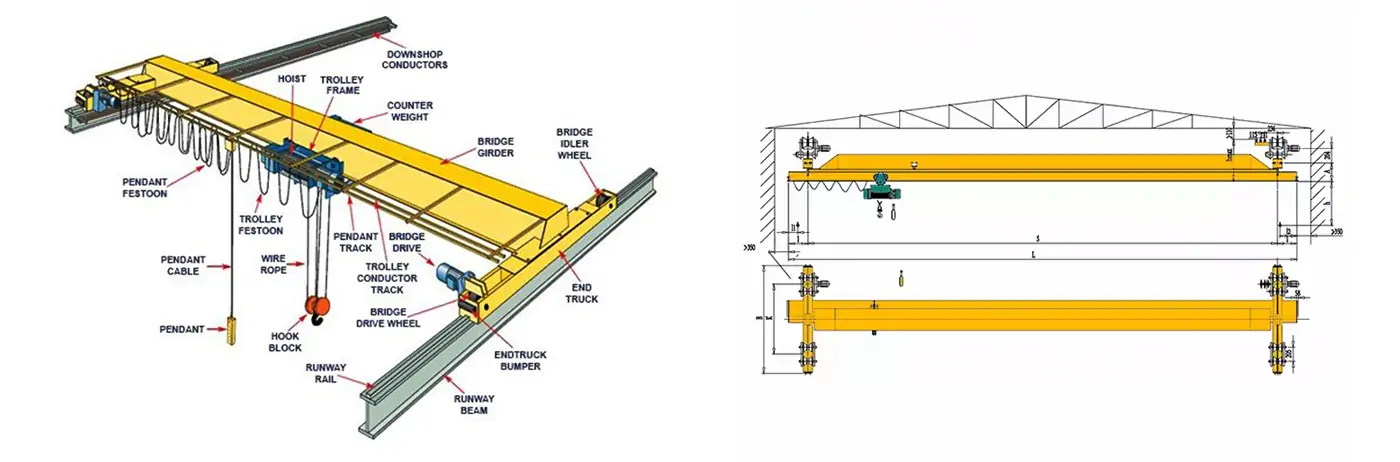

A single girder EOT crane is mainly composed of the following major components: main girder, end carriages, electric hoist, control system, power supply system, wheels, buffer devices, and safety components. The main components and functional features are introduced as follows:
Introduction of main components and functional characteristics:
LD type single girder EOT cranes are usually suitable for machinery manufacturing, assembly, yards, and warehouses. However, it should be noted that it is not suitable for lifting dangerous goods such as molten metal, hot metal, flammable goods, etc., or for workshops containing acidic or other corrosive chemical gases to ensure operational safety and equipment life. The following are common application scenarios:
| Lifting capacity | 1 ton | 2 ton | 3 ton | 5 ton | 10 ton | 16 ton | 20 ton |
| Span | 7.5-31.5 m | ||||||
| Lifting height | 6, 9, 12 m | ||||||
| Lifting speed | 8(8/0.8) m/min | 7(7/0.7) m/min | 3.5(0.35/3.5) m/min | 3.3(0.33/3.3) m/min | |||
| Hoist traveling speed | 20 m/min | ||||||
| Crane traveling speed | 20(30) m/min | ||||||
| Working Level | A3, A4, A5 | ||||||
| Power | Three phrase; 380V, 50Hz | ||||||
Weihua Group provides customized single girder eot crane, which can provide you with customized solutions for all kinds of non-standard structures and complex working conditions. Whether it is limited space in the plant, a large operating span, or special lifting requirements, Weihua can meet your actual needs through precise design.
To ensure that we provide you with the most suitable design solution, please inform us of the following information:
As a trusted single girder EOT crane manufacturer and supplier, we deliver end-to-end lifting solutions—from design to installation and commissioning. We have 37 years of development and production experience. Our team provides tailored designs and reliable after-sales service, including installation, training, and maintenance.
Looking for a reliable single girder EOT crane supplier? Contact us today to discuss your lifting requirements, request detailed drawings, or get a competitive quote tailored to your project needs.
A single girder EOT crane uses one main bridge beam and a trolley with an electric hoist to lift and transport loads. 1-20 ton lifting capacity. It is suitable for lighter lifting capacities and areas with restricted space.
The main girder is the primary horizontal structure supporting the hoist and load. In a single girder design, this is the central beam on which the trolley moves.
The main difference between single girder and double girder EOT cranes is the main girder structure and load carrying capacity. Single girder EOT cranes have only one main girder, which is usually used for lighter lifting capacity, more compact structure and lower cost; while double girder EOT cranes have two main girders, which have stronger load carrying capacity, and are suitable for occasions with higher lifting capacity.
Pricing varies based on lifting capacity, span, lifting height, and customization. For a standard 5 ton single girder EOT crane, the cost typically starts from $5,000, depending on configuration and region. Contact us for an exact quote.
