A marine travel lift, also called a boat lifting gantry crane or yacht lift crane, is an upgraded design based on the rtg gantry crane structure, mainly used for handling, storing, and maintaining yachts from 30 to 1,200 tons. Its unique "U"-shaped structural design can easily accommodate ultra-high hulls and ensure that yachts can safely enter the equipment. The equipment has 12 flexible movement functions, including linear motion, tilting motion, walking motion, Ackerman steering, etc., which can adapt to various terrains and complex working conditions. It is widely used in coastal areas and scenes that require high-precision lifting and horizontal transportation.
The boat marine travel lift can be customized according to user needs. It adopts a modular structure and supports flexible configuration to meet the needs of different hull sizes and weights. The Marine Travel Lift is equipped with high-strength lifting equipment and an intelligent synchronous control system to ensure stability and safety during the lifting process. At the same time, it supports multi-lifting point synchronous operation to improve operational efficiency. The marine travel lift crane can easily cope with complex terrain and narrow spaces. It is suitable for various scenarios such as ports, shipyards, yacht clubs, etc., providing efficient and reliable solutions for the maintenance, repair, and storage of yachts.

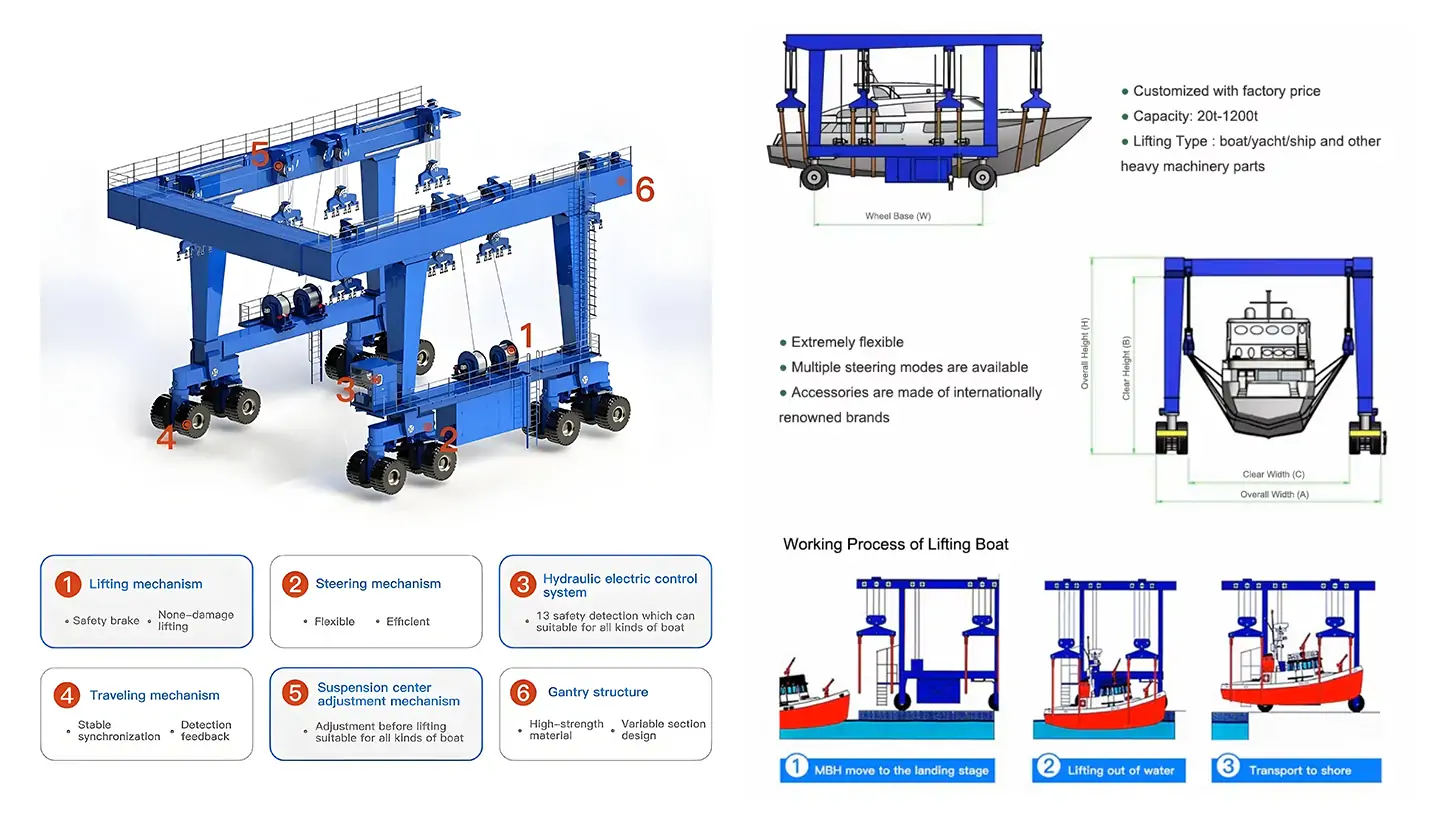

The marine travel lift is mainly composed of core components such as the main structure, traveling wheelset, hoisting mechanism, steering mechanism, hydraulic transmission system electrical control system, and other parts. The overall structure is sturdy and durable, optimized for yacht handling, maintenance, and launching and landing operations. The following are the functional characteristics of the main components:
Main Frame
Lifting Slings (Belts)
Hydraulic Lifting System
Tire sets and steering systems
Weihua provides customized Marine Travel Lift For Sale, with lifting capacity ranging from 25 tons to 1000 tons (e.g. 25Ton/50Ton/70Ton/300Ton, etc.), which is suitable for yachts, cargo ships, warships, and other ship types. Customized parameters include: lifting height, span width, track layout, drive mode (electric/hydraulic), control system (automation/remote monitoring), and environmental protection and anti-corrosion grade. Weihua Crane provides a one-stop solution to meet the lifting needs of shipyards, ports, and maintenance centers. If you have related needs, please contact Weihua for CAD drawings and technical solutions now!

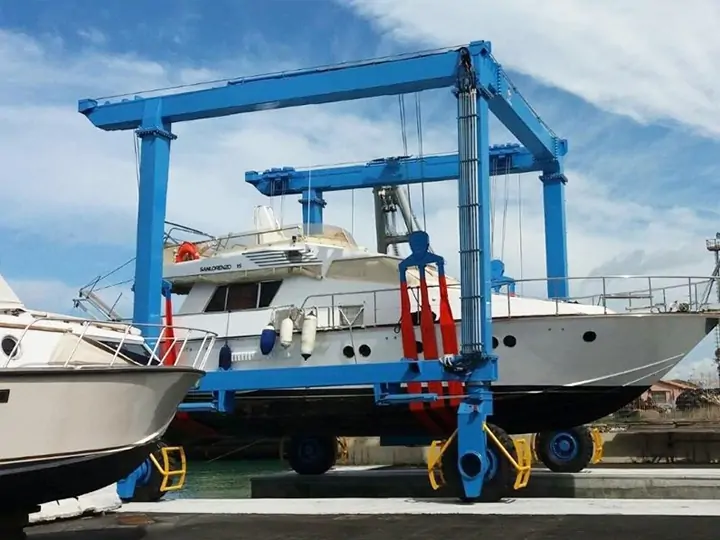

25 Ton Marine Travel Lift

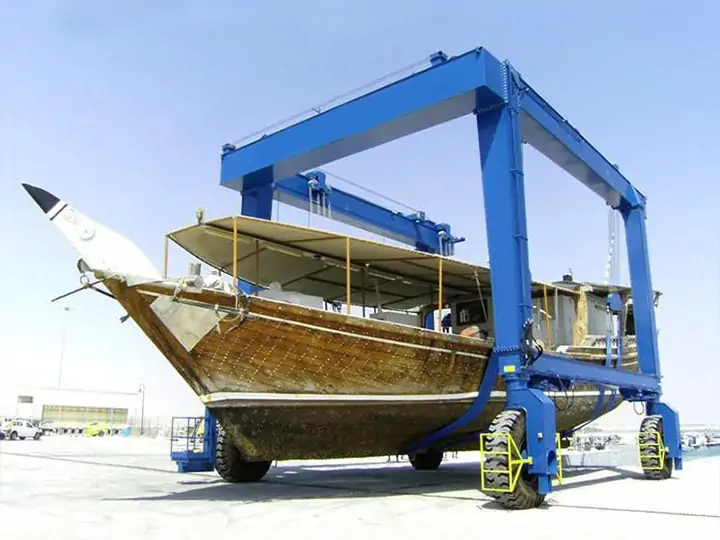

50 Ton Marine Travel Lift

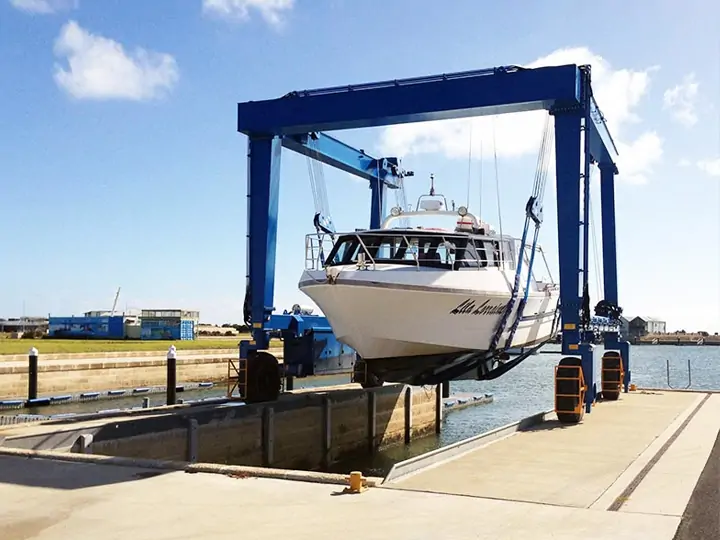

70 Ton Marine Travel Lift

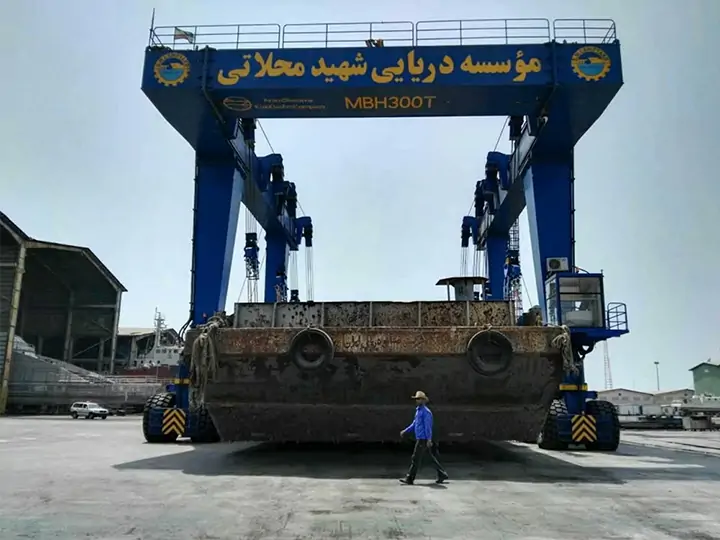

300 Ton Marine Travel Lift
View the Marine Travel Lift drawings below to see technical specifications, CAD designs and engineering layouts. Weihua can provide customized design solutions based on your needs, including PDF drawings and 3D models.
| سعة | 80 Ton | 100 Ton | 150 Ton | 200 Ton | 300 Ton |
|---|---|---|---|---|---|
| فترة | 9.6m | 11.5m | 13.5m | 14m | 15.5m |
| Width | 11.5m | 13m | 16m | 16.5m | 18.1m |
| Length | 13m | 15m | 17m | 19.9m | 23.4m |
| Hight | 12m | 10m | 13m | 13m | 16.1m |
| Lifting speed (with load) | 0-1m/min | 0-1m/min | 0-1m/min | 0-1m/min | 0-1m/min |
| Lifting speed (without load) | 0-3m/min | 0-3m/min | 0-2m/min | 0-2m/min | 0-2m/min |
| Travelling speed (with load) | 0-25m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-25m/min |
| Travelling speed (without load) | 0-45m/min | 0-30m/min | 0-30m/min | 0-30m/min | 0-45m/min |
| Diesel engine | 132kw | 132kw | 154KW | 250kw | 250kw |
| Ground pressure | ~5Mpa | ~9Mpa | ~10bar | ~11bar | ~11bar |
| Max wheel load | 375KN | 420KN | 360KN | 470KN | 470KN |
Marine travel lifts are widely used in the following multiple industries and scenarios:
Established in 1988, Weihua Crane is a leading marine travel lift manufacturer and supplier in China. With 37 years of manufacturing and R&D experience, we have established an outstanding reputation in the industry. Currently, we have more than 1,500 authorized patents and have passed ISO 9001 quality management system certification and EU CE certification. Our self-developed electrical anti-shaking control technology is at the international leading level, ensuring high precision and reliability of lifting operations.
Weihua Crane has a professional production team, assembly team, and logistics tracking team, dedicated to providing customers with a full range of services and support. We have complete project drawing design capabilities and can quickly issue detailed drawing programs within 24 hours, effectively shortening the project cycle and reducing the number of reworks.
To further enhance the customer experience, we provide a one-year product warranty and support on-site installation and technical guidance. Whether from pre-design to post-maintenance, Weihua Crane always adheres to customer demand and is committed to providing high-quality, high-performance lifting solutions for customers around the world.
Contact us today to learn more about marine travel lift cranes, and let our professional team customize the most suitable solution for you to help you reach new heights in yacht maintenance and management.
