European Double Beam Gantry Crane

Product Introduction

The European-style double-girder gantry crane adopts European design standards and advanced manufacturing processes, resulting in a lightweight structure (overall weight reduced by more to 15%) and a 10%-20% reduction in wheel pressure. It is suitable for medium to heavy-duty industrial applications. Its box-shaped main girder and tubular end beam design effectively reduce the overall height of the crane, increasing lifting space. Equipped with a three-in-one drive, PLC, and variable frequency control system, it offers smooth and precise operation and supports stepless speed control.

This crane complies with FEM/DIN standards and features a modular design, easy maintenance, low energy consumption, and low noise, making it widely used in ports, warehouses, steel mills, and logistics industries for efficient material handling operations.

Product Details

Difference Between European VS Traditional Double Girder Gantry Cranes

Differences	European double-beam gantry crane	Traditional double-beam gantry crane
Structural weight	Lightweight design (15-30% lighter)	Traditional box-beam structure
Operation energy consumption	Energy saving of more than 30%	Conventional energy consumption level
Lifting height	Height optimization and 20% improvement	Fixed clearance requirement
Control accuracy	±1mm positioning accuracy	±10mm conventional accuracy
Maintenance cost	Maintenance-free bearings + centralized lubrication system	Conventional lubrication requirements
Service life	Design life of 25 years (FEM standard)	Generally 15-20 years
Ease of installation	Generally, 15-20 years	Large on-site welding workload

Features

• Designed to meet European FEM/DIN standards, with complete safety devices.
• Utilizes high-strength steel and an optimized box-girder main beam and tubular end beam structure for lightweight design.
• The entire machine has a low self-weight, low wheel pressure, and low overall height, significantly reducing the load and investment requirements for the factory building, track foundation, and supporting facilities.
• Modular design, compact structure, convenient transportation and installation, and flexible adaptation to different spans and working conditions.
• Standard equipped with full frequency conversion stepless speed regulation and PLC control, ensuring smooth operation, precise positioning (accuracy up to ±1mm), and low energy consumption.
• The low headroom design effectively increases the lifting height within the working area, resulting in high space utilization.
• High protection level for the electrical system (e.g., IP55), wide operating temperature range (-25℃~50℃), and strong environmental adaptability.
• Can integrate intelligent control systems, providing advanced functions such as anti-sway, remote monitoring, and automatic positioning.
• Low operating noise (<74dB), easy maintenance, and low overall operating and maintenance costs.

Application

European-style double-girder gantry cranes, with their high stability, precise control, and powerful load capacity, are widely used in industrial fields with high demands for material handling. Their main application scenarios include:

Heavy industrial manufacturing: Commonly found in steel metallurgy, large-scale equipment manufacturing, wind turbine blade assembly, and automotive manufacturing workshops, used for efficient handling and precise assembly of heavy components.

Logistics and port operations: Suitable for port container yards, railway freight yards, and large logistics centers, for the rapid transfer and stacking of containers and bulk goods.

Energy and chemical industries: Used in coal, petrochemical, and hydropower equipment installation, for lifting heavy equipment, and can be adapted to special environments through explosion-proof and corrosion-resistant designs.

Large component production and construction: Widely used in production bases and construction sites of large components such as precast concrete components and bridge components, enabling the handling and installation of heavy materials.

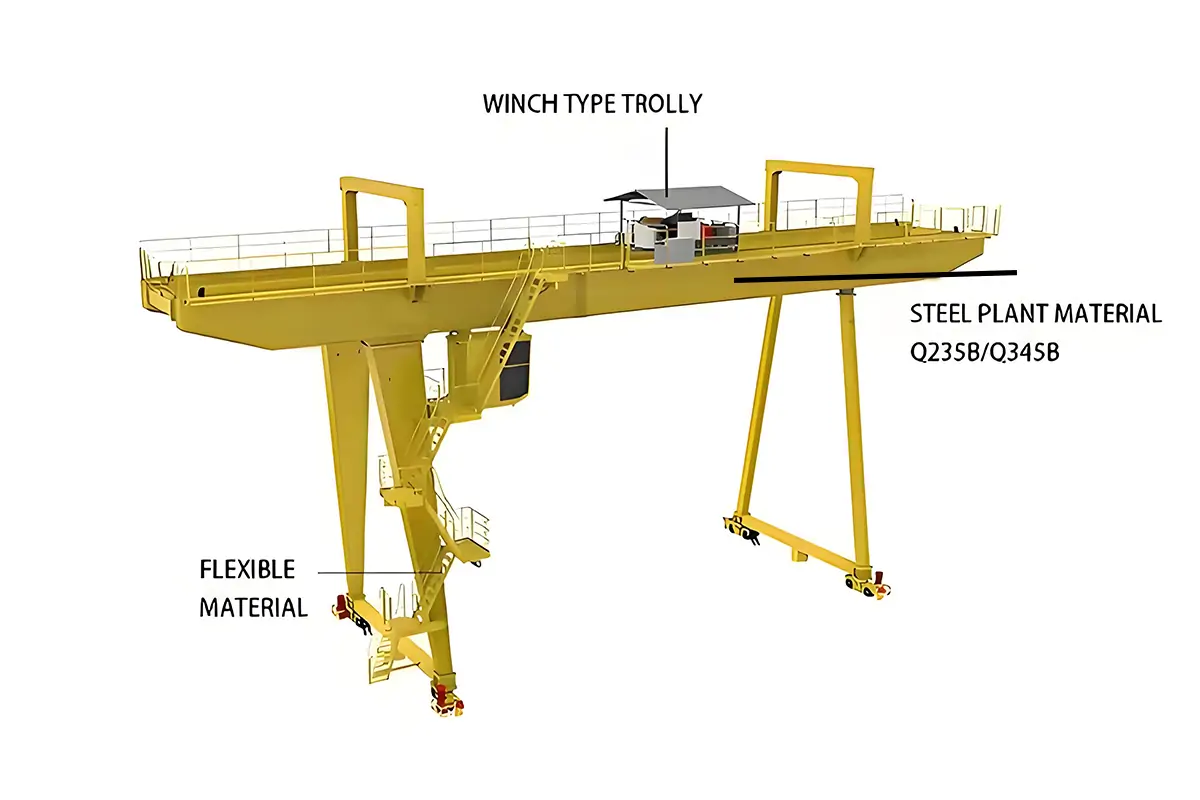

Parts of European Double Beam Gantry Crane

European double girder gantry cranes are designed and manufactured by advanced European FEM standards and consist of two main girders, an end beam system, a hoisting trolley, a control system, a cab, and so on. The following are the basic functional characteristics of the main components:

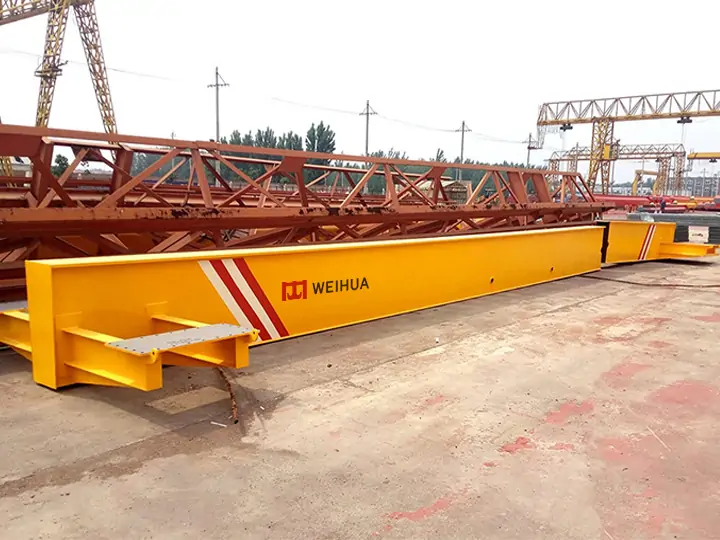

• Main Girder: Adopts a box-type or truss-type double main girder design, conforming to FEM standards, combining high structural rigidity with lightweight characteristics.

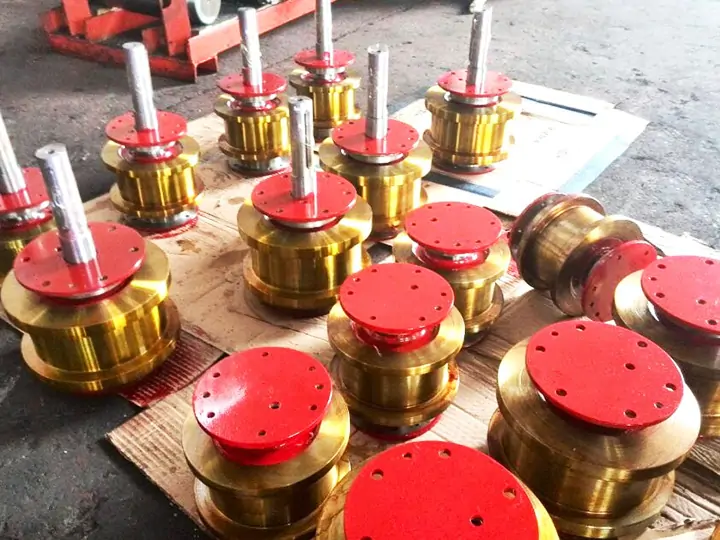

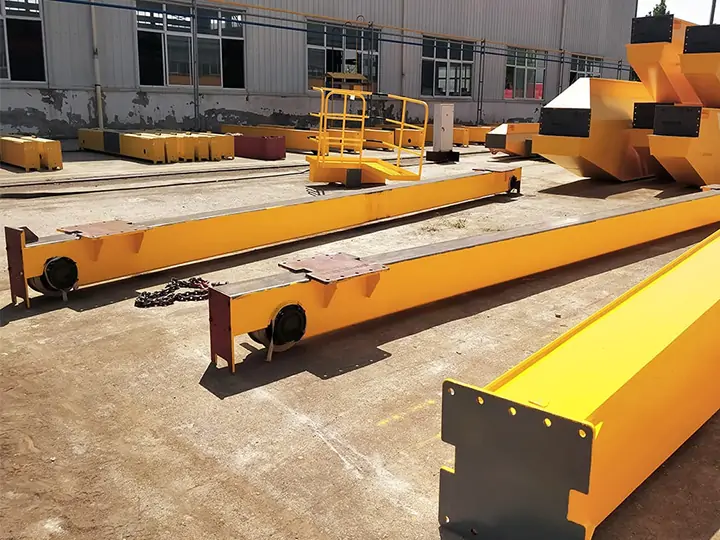

• End Girder: Made of high-strength steel structure, equipped with an integrated traveling mechanism and variable frequency drive, ensuring smooth operation and precise positioning.

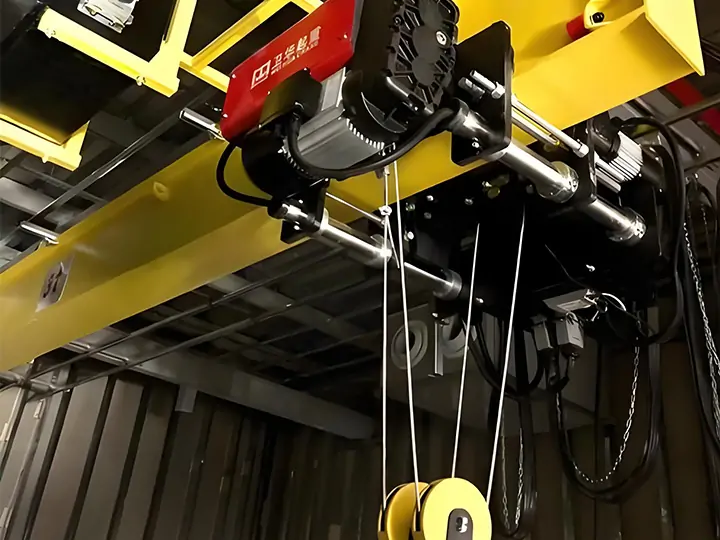

• Lifting Mechanism: Equipped with steel wire ropes conforming to European standards, using variable frequency control, supporting double trolley or main/auxiliary hook configurations, enhancing operational flexibility.
• Control System: Integrates full variable frequency speed regulation and PLC control, with a touch screen human-machine interface (HMI), and optional intelligent functions such as anti-sway, automatic positioning, and load monitoring.
• Operator's Cabin: Conforms to ISO standards, features a panoramic design, with shock absorption, sound insulation, and air conditioning options, built-in integrated control panel, and supports remote monitoring and fault diagnosis.

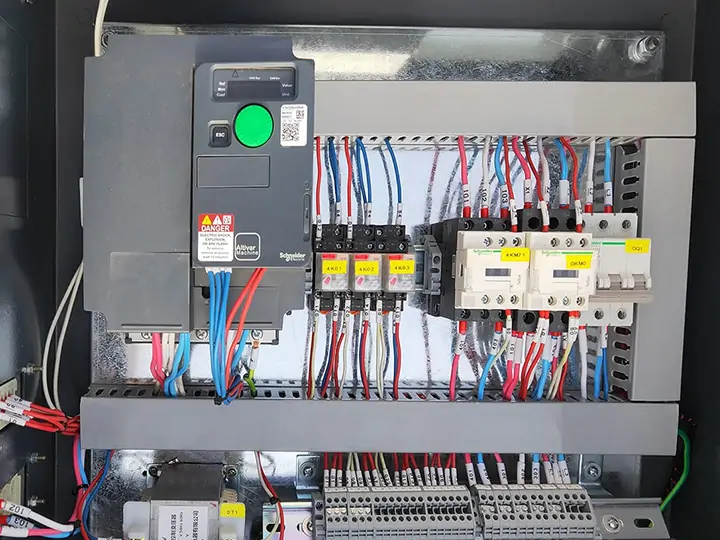

• Electrical System: Features IP55 protection rating, suitable for outdoor and harsh environments, adopts energy-saving design, and supports wireless remote control or automated program control.
• Safety Devices: Standard features include overload limit, limit switches, emergency stop system, and audible and visual alarms. Optional features include wind anchoring and anti-collision devices, comprehensively ensuring operational safety.

Specifications

Mode	European Double Beam Gantry Crane
Loading capacity	5 ~ 550 ton
Lifting height	3 ~ 30 m (customized)
Lifting speed Single speed	3 ~ 8 m/min; or customized variable frequency speed: 1 ~ 20 m/min;
Span	5~35 meter
Lifting mechanism	Winch trolley
Working class	A3 ~ A7
Working temperature	-20 ~ 40 ℃
Power supply	AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage	DC-24 / 36V
Motor protection class	IP54 IP55 IP65
Control way	Ground handle control(Push button), wireless remote control, cabin control
Safety device	Buffer,current overload protection,overload device,power failure protection
Application area	Factory, workshop, warehouse, power station, logistic, etc.

European Double Beam Gantry Crane Manufacturer & Supplier

Weihua, a renowned Chinese manufacturer and supplier of European-style double-girder gantry cranes, provides comprehensive solutions from design and FEM-certified manufacturing to installation and maintenance. We hold CE certification and ISO 9001 quality system certification, and our products strictly adhere to FEM standards.  Our cranes have lifting capacities ranging from 5 to 500 tons and support customized features, widely used in steel, port, wind power, and large-scale manufacturing industries.

For customized crane solutions, please contact our engineering team for a free consultation and project evaluation.
