semi gantry crane

Gantry Cranes

BMG Semi Gantry Crane

  • Span 6-24 meter
  • Lifting Height 5-30 meter
  • Hoisting Speed 1-10 m/min
  • Introduction
  • Application
  • Specification
  • Features
  • Related

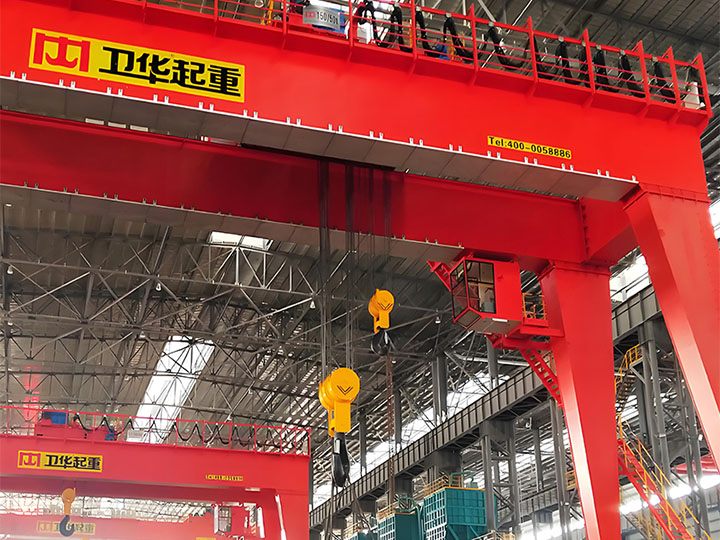

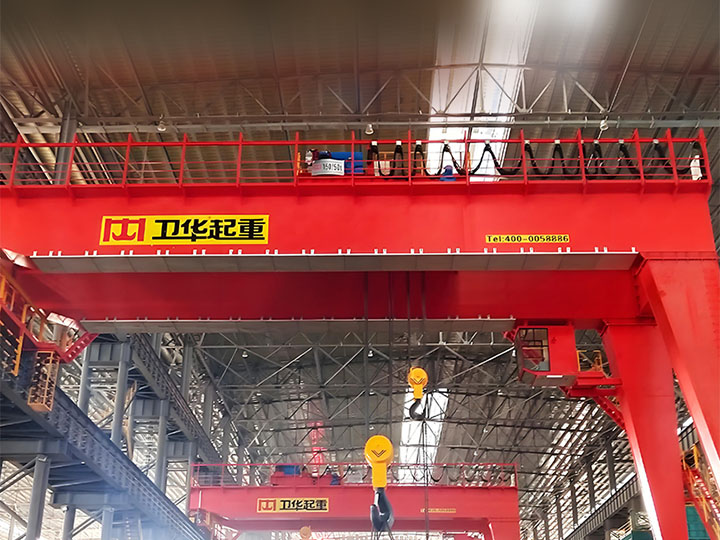

Product Introduction

BMG semi gantry crane consists of two main beams, an electric trolley, and a supporting leg on one side. This design allows one end of the crane to be fixed to a building wall, column or other structure, while the other end is supported by independent legs. Adopting this structure of gantry crane can fully utilize the site space. The main beam adopts a box-welded structure, and the large vehicle operating mechanism is driven separately. Semi-gantry crane operation includes ground operation, remote control operation, and cabin operation.

There are two conductive forms of semi-gantry cranes: cables and sliding contact wires. Such a structure allows the semi-gantry crane to cover a larger working area and provide an efficient material handling solution in limited spaces.

Application

It is suitable for material loading, unloading, and handling in mining ports, railway freight stations, and open-air warehouses. And it can match with various lifting devices for special operations.

The semi-gantry crane is contactless, with module speed control, and can achieve micro speed and dual speed. The operation and lifting are particularly smooth. The electronic control is simple and close to the frequency conversion function. The control panel (handle) adopts 12V voltage and 380V voltage.

Users could put it in the industrial plants. The semi gantry crane could lift heavy equipment and machine parts, especially in a limited and small space. Also, it is suitable for loading, unloading, and stacking goods in logistics centers and warehouses.

Features

  • The gantry adopts a box-shaped double beam and π - shape leg welded structure, which is reliable. It is more stable than other shape designs.
  • The conductive forms are cable drum type and sliding contact wire type (optional). Users could have multiple choices of different options.
  • Electric trolley adopts irregular steel rail cables for conductivity. Therefore, it could perform lifting missions with higher performance.
  • All institutions are in the control room, which is convenient and flexible. This exceptional design creates an easier control process.

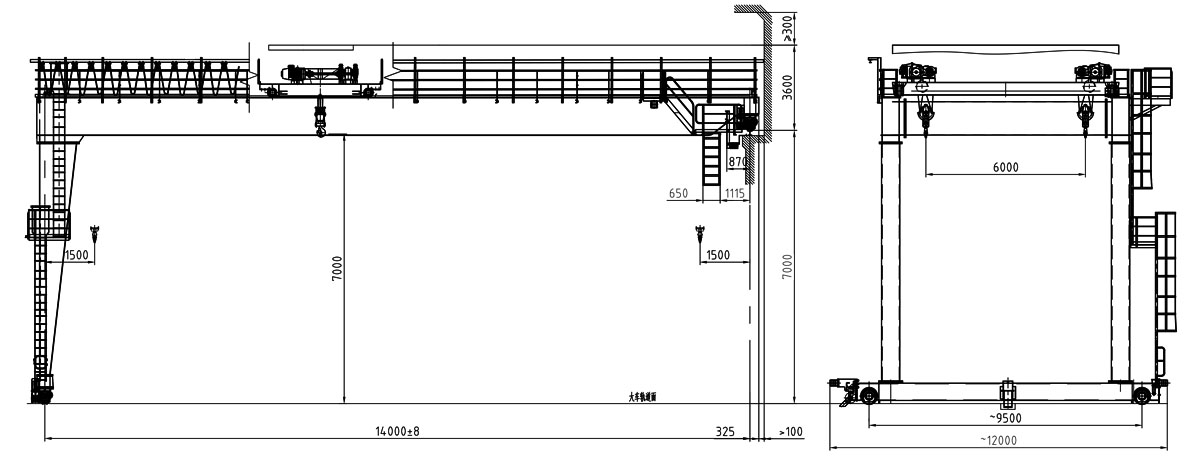

Double Girder Semi-Gantry Crane Specifications

semi type gantry crane
Product NameBMG semi gantry crane
Lifting Capacity5-320 ton
Span6-24 meter
Lifting Height5-30 meter
Hoisting Speed1-10 m/min
Trolley Travelling35-40 m/min
Work DutyA5-A7
Power SourceAs request
Operational MethodGround Control+Remote Control

Types of semi gantry crane

Semi-gantry cranes can be divided into single-girder and double-girder semi gantry cranes based on their structure. The following are the characteristics of the two types:

Single Girder Semi Gantry Crane

Features a single main girder with an electric hoist suspended below the main girder for operation. The lifting capacity typically ranges from 1 to 20 tons (some models can reach up to 32 tons). It features a simple structure, lightweight design, and easy installation and maintenance, compatible with ground tracks or fixed legs. It typically adopts a box girder or truss girder design, with box girders offering better manufacturability and truss girders providing stronger wind resistance.

It is suitable for spaces with limited area and for handling medium to small-sized materials, such as factories, workshops, warehouses, and logistics centers without column support.

Single Girder Semi Gantry Crane
Single Girder Semi Gantry Crane

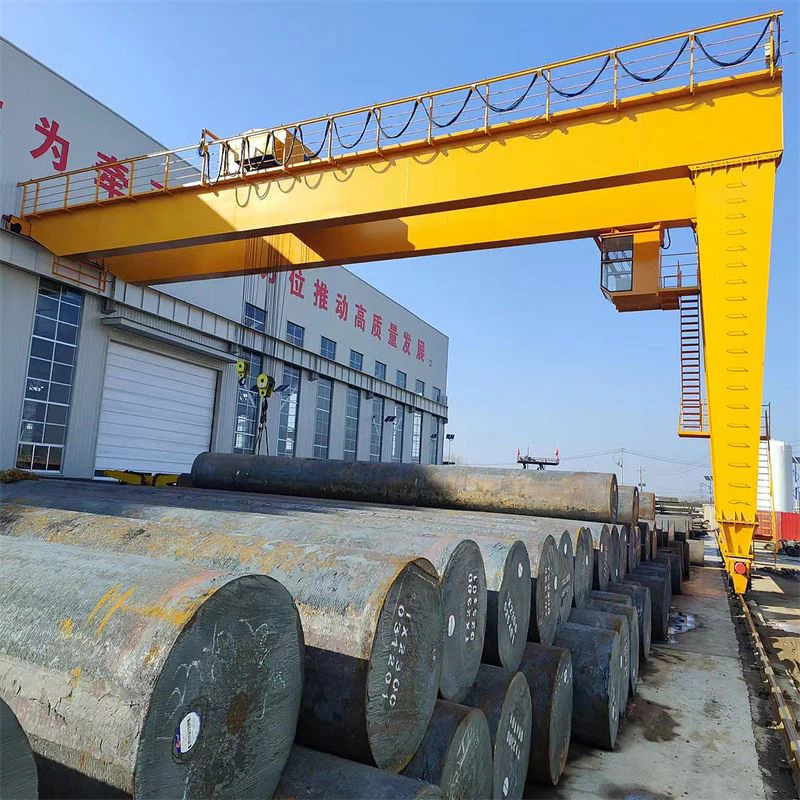

Double Girder Semi-Gantry Crane

Features two parallel main beams, with an electric hoist mounted on a trolley that runs along the track above the main beams. It can be equipped with various lifting devices (such as electromagnetic clamps, grabs, etc.). The lifting capacity is generally 5 to 50 tons. Compared to single-beam cranes, it has a more stable structure and is suitable for heavy-duty loads and long spans, such as steel mills, ports, terminals, heavy equipment manufacturing, and other high-load working environments.

Double Girder Semi Gantry Crane

Professional Semi-Gantry Crane Solutions

As a leading crane manufacturer, we offer a full range of high-performance semi-gantry cranes, including standard models (1-50 tons, 5-35 meters span, A3-A6 duty class) and fully customized solutions. For special operating conditions, we can provide explosion-proof, corrosion-resistant, and high-temperature-resistant designs, as well as specialized lifting equipment such as electromagnetic lifters and grabs, and integration with automated systems.

We provide end-to-end customized services from requirements analysis, scheme design to production manufacturing, installation, and commissioning, utilizing a modular design philosophy to enable rapid response. Customers can enjoy professional technical support, operator training, and lifetime maintenance plans. If you require a customized semi-gantry crane, please contact our engineering team. We will provide the optimal solution based on your specific operating conditions (such as load capacity, span, environmental requirements, etc.) to ensure equipment safety and operational efficiency.
