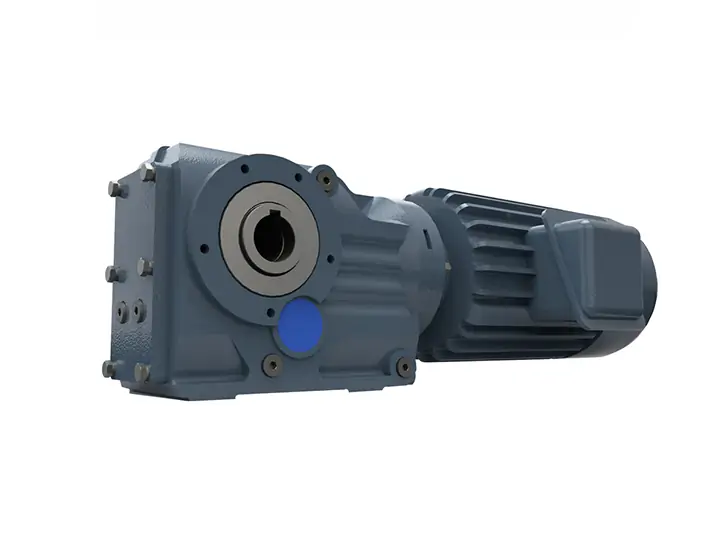

K Series Gear Reducer

Introdução ao produto

The K Series Tripe Gear Reducer is a highly integrated power transmission unit that combines a gearhead, motor, and brake (or inverter drive system) into a compact unit, usually with a helical-bevel gear structure. K series gear reducer, characterized by low energy consumption, reliability, and durability, high overload capacity, power up to 132KW,and reducer efficiency up to 95%.

The design saves installation space, reduces the number of external connecting parts, and improves transmission efficiency and reliability, making it suitable for compact, highly automated machinery and equipment, such as crane operators, conveyor systems, and mixing machines.

Specifications

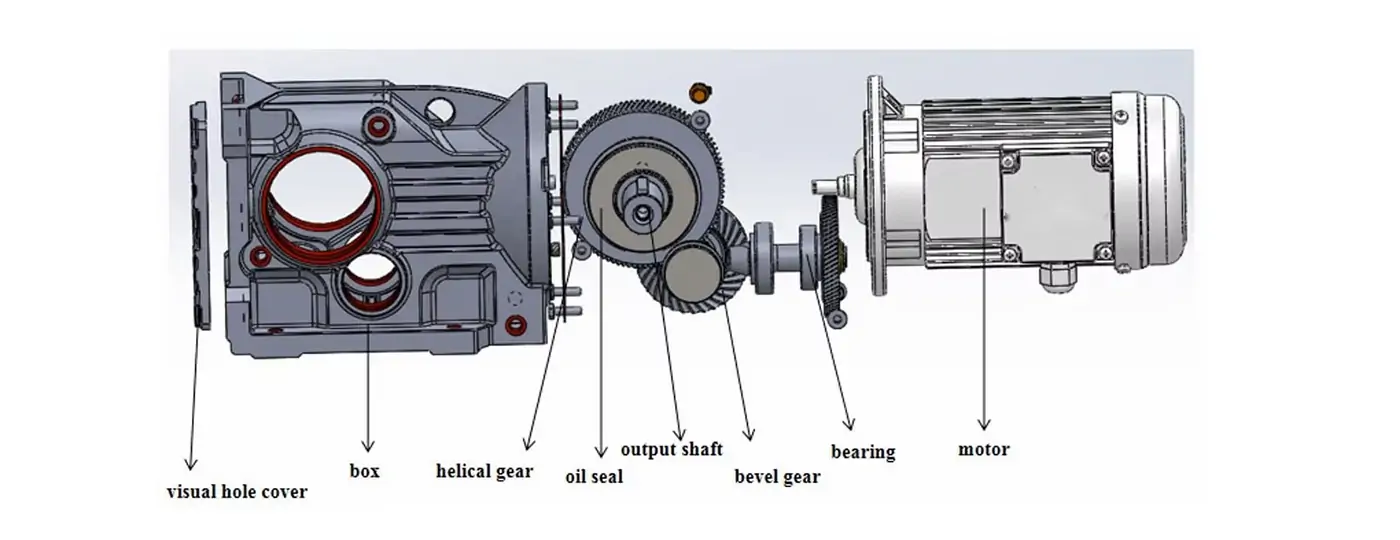

Components

Housing: Made of high-strength cast iron for excellent rigidity and vibration damping.
Gears: Spiral bevel gears for smooth operation, low noise, and high torque.
Input configuration: Compatible with motors, solid shaft input,s and IEC standard motor flanges for easy installation.
Applicable motors: Can be used with single-phase AC motors, three-phase AC motors, brake motors, inverter motors, multi-speed motors, explosion-proof motors, and drum motors.

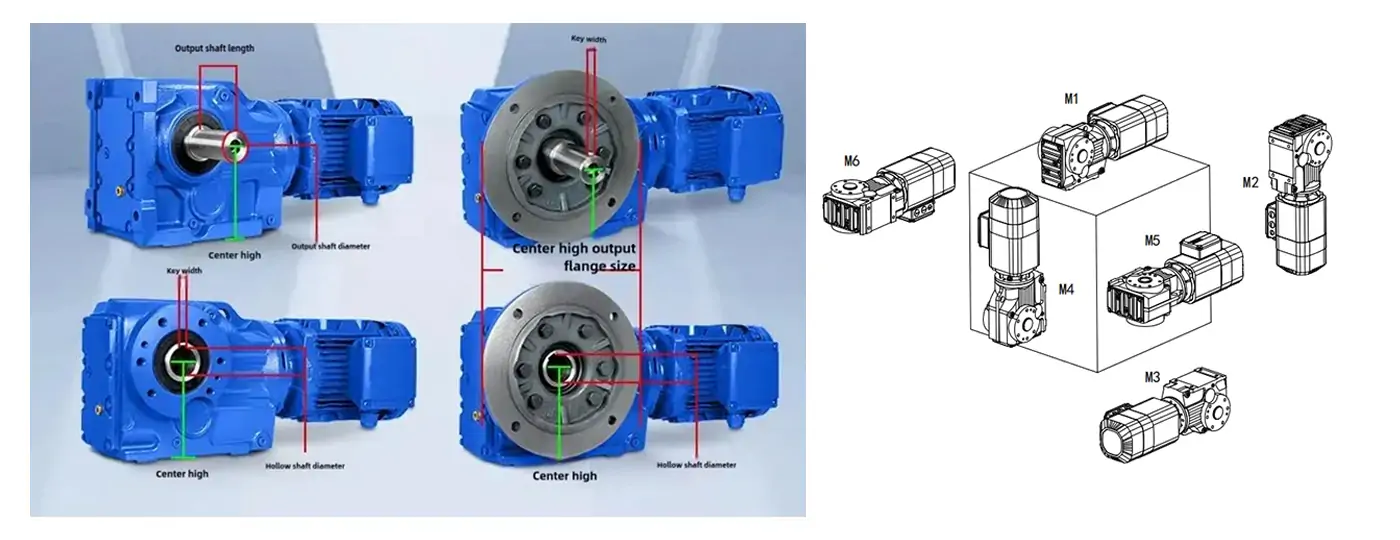

Output configurations: Solid shaft output for direct connection. Hollow shaft outputs with keyway, shrink disk, or spline options for mounting flexibility.

Caraterísticas

• Highly integrated: Motor, gearhead and brake (or inverter) in one unit, reducing the need for additional accessories such as couplings, brackets, etc. and reducing installation complexity.
• Typical combination: K series helical gearhead + IEC standard motor + electromagnetic brake/inverter drive.
• Compact structure: Adopting modular design, the volume is smaller than the traditional split reducer + motor combination, which is suitable for space-constrained working conditions.
• High-efficiency transmission: Helical gear-bevel gear combination has a transmission efficiency of >90%, smooth operation, low noise, and strong load carrying capacity.
• Flexible adaptability: supports a variety of motor types (such as three-phase asynchronous motors, brake motors, inverter motors, etc.) and output methods (solid shaft, hollow shaft, flange output). Can be used in combination with other reducers (such as R/F series) to extend the speed ratio range.
