Electric Hoist
The European electric hoist is a high-performance, lightweight lifting equipment designed according to European technical standards, complying with FEM standards. It is typically used in conjunction with European cranes, single-girder overhead cranes or double-girder overhead cranes, suspension rails, and other equipment, allowing for flexible adaptation to various scenarios. Its core features include a compact structure, light weight, energy saving, and high efficiency, making it suitable for occasions with high requirements for precision, space, and energy efficiency. Such as automobile manufacturing, precision instrument assembly, food and medicine, warehousing and logistics, automated production lines, and other scenarios.
European Hoist
Weihua offers a comprehensive portfolio of European hoists, tailored to meet various operational needs:
All hoist systems can be custom-engineered according to your specific requirements, including load capacity, lifting height, working environment, and structural configuration.
| Type | Load Capacity(T) | Lifting Height(m) | Lifting Speed (m/min) | Traveling Speed (m/min) | Lifting Motor Power(kw) | Rope Dia. (mm) | Group(ISO) | Rope Reeving |
| Single Girder | 3.2 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 3.2/0.45 | 7 | M5 | 4/1 |
| 5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 9 | M5 | 4/1 | |
| 6.3 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 9 | M5 | 4/1 | |
| 8 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 13 | M6 | 4/1 | |
| 10 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 13 | M5 | 4/1 | |
| 12.5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 12.5/1.9 | 13 | M5 | 4/1 | |
| Double Girder | 5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 6.0/0.9 | 11 | M5 | 4/1 |
| 10 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 9.5/1.5 | 15 | M5 | 4/1 | |
| 12.5 | 6/9/12/15/18 m | 5/0.8 | 20/5 | 12.5/1.9 | 15 | M5 | 4/1 | |
| 16 | 6/9/12/15/18 m | 4/0.6 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 20 | 6/9/12/15/18 m | 4/0.6 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 20 | 6/9/12/15/18 m | 3.4/0.5 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 25 | 6/9/12/15/18 m | 3.4/0.5 | 20/5 | 16/2.6 | 18 | M5 | 4/1 | |
| 40 | 6/9/12/15/18 m | 4.9/0.8 | 20/5 | 38 | 20 | M5 | 4/1 | |
| 63 | 6/9/12/15/18 m | 3.3/0.5 | 20/5 | 38 | 20 | M5 | 4/1 |

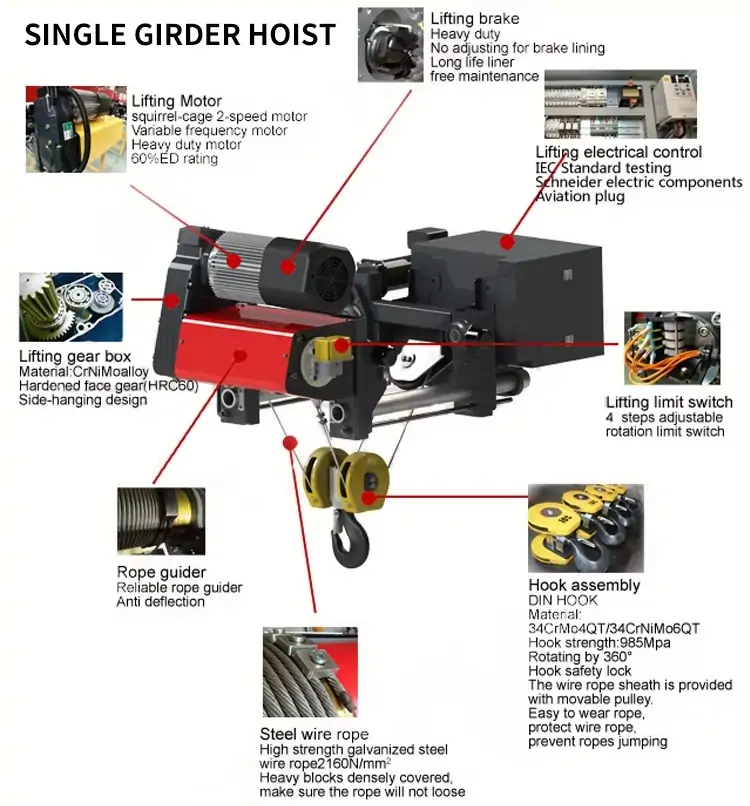

European electric hoist is mainly composed of a motor, transmission mechanism, drum/sprocket, brake, reducer, hook group, safety protection devices, and other components. The following are the functional characteristics of each component:
Motor: Adopt a German imported variable pole motor, insulation class F, protection class IP54, optional encoder to realize precise control.
Transmission mechanism: helical gear or planetary gear transmission, smooth running, low noise, long life.
Reel/sprocket: The reel is made of high-quality seamless steel tube with CNC machining, and the rope groove is matched with the rope guide to prevent the rope from being messed up; the sprocket is suitable for chain hoists, with strong abrasion resistance.
Brake: Double-disc electromagnetic disk brake, self-adjusting brake clearance, maintenance-free, braking times over 1 million times.
Reducer: Aluminum alloy shell, lifelong lubrication (no oil change), helical gear drive, low noise, protection grade IP54, adaptable to -20℃~40℃ environment.
Hook set: 360°swivel forged hook with safety tongue, conforming to DIN standard, high strength and wear-resistant.
Safety protection devices: Including gear-driven limiters, electronic overload protection, thermistor overheating alarm, brake pad wear monitoring, etc.
Electric European hoist is a kind of high-efficiency, lightweight, modular lifting equipment with compact structure, smooth operation, energy saving and environmental protection, safety, and reliability etc. It is widely used in industries with high requirements for space utilization, precise control, and safety. Its design is in line with European industrial standards (FEM/ISO), and it is suitable for modernized intelligent workshops, precision manufacturing and high-frequency handling scenarios. The following are the main application industries and scenarios
| Comparison items | European Electric Hoist | Ordinary Wire Rope Electric Hoist |
|---|---|---|
| Self weight | Higher variable frequency option | Heavier, traditional wire rope construction |
| Control accuracy | Higher, variable frequency option | General, conventional speed regulation (single and double speed optional) |
| Space occupation | Compact size, suitable for low spaces | Slightly higher relative mounting height |
| Price | $2,750-4,450 | $350-1200 |
As one of the leading European hoist manufacturers in China, Weihua Group is dedicated to delivering lightweight, intelligent, and high-performance lifting solutions for a wide range of industrial applications. With decades of engineering expertise and a strong focus on innovation, we specialize in the design and production of customized European hoists and common electric wire rope hoists that meet the latest global standards in safety, efficiency, and reliability. We hold multiple international certifications, including ISO, CE, SGS, and TUV, and have exported lifting equipment to over 130 countries worldwide. Feel free to contact us for customized solutions.
