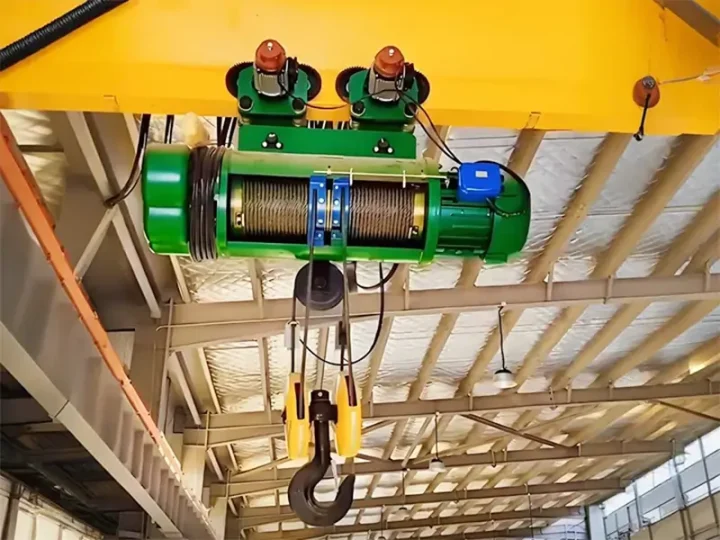

HB Model Explosion Proof Wire Rope Electric Hoist

Бүтээгдэхүүний танилцуулга

The HB explosion-proof electric wire rope hoist is designed for safe and efficient lifting operations in hazardous environments. With a lifting capacity range of 1 to 32 tons and a lifting height of 6 to 48 meters, it is suitable for a variety of applications in hazardous locations. The explosion-proof electric hoist features exposed components made of special non-sparking materials, which actively enhance operational safety. Furthermore, it can operate as a standalone unit or be installed on single-girder bridge cranes and suspension cranes within workshops. In addition, when combined with a travel motor, brake, and other mechanical parts, it forms a trolley assembly. This configuration, in turn, enables its installation on double-girder bridge cranes for heavy-load operations.

This explosion-proof electric hoist carries ExdII BT4 and ExdII CT4 certifications. Thereby, it serves extensively in factories that handle combustible gases or vapors, specifically where the explosion protection level is no higher than B or C and the ignition group is no less than T4 (135°C).

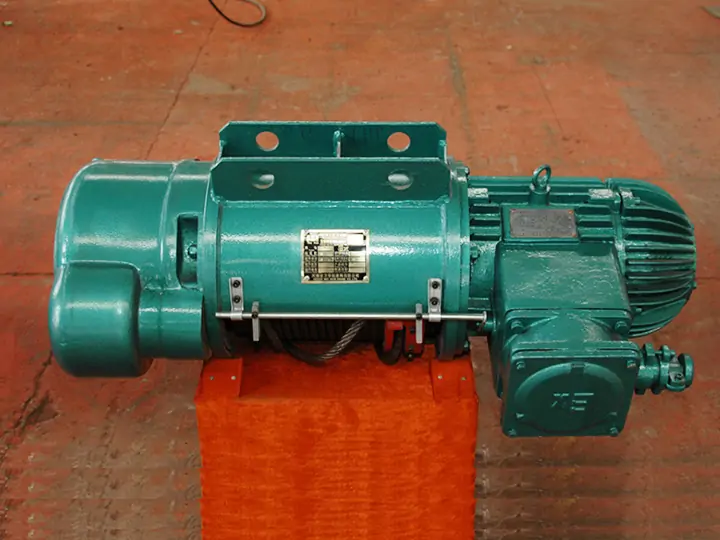

HB Model Explosion Proof Wire Rope Electric Hoist

Features of Explosion-Proof Hoists

Explosion-Proof Motors: Both the hoisting and travel motors are explosion-proof motors, offering robust, durable, and explosion-proof performance.
Explosion-Proof Hooks: Explosion-proof lifting hooks utilize a standard design but feature special copper plates. If necessary, the hook material can be modified to stainless steel for even higher explosion-proof performance.
Explosion-Proof Electrical: The hoist's electrical box and handle are both explosion-proof and can be customized based on requirements and application conditions. Compared to conventional wire rope hoists, explosion-proof hoists feature larger and heavier electrical boxes, and more robust and waterproof handles.
Explosion-Proof Limiters: Explosion-Proof Hoists feature a high-performance explosion-proof limiter, marked "EX."
Wireless Remote Controls: Explosion-Proof Hoists typically utilize wireless remote controls to ensure safe operation.

Хэрэглээ

Explosion-proof hoists find wide application in hazardous locations prone to fire and explosion, spanning a range of industries from petroleum, petrochemicals, and chemical plants to pharmaceuticals, food processing, shipping, offshore operations, and the power, mining, electronics, and railway sectors.

When operating in explosive gas environments, explosion-proof electric hoists are classified as either Zone 1 or Zone 2 according to GB 3836.14-2000.

Note: Zone 1: Locations where explosive gas environments may occur. Zone 2: Locations where explosive gas environments are unlikely to occur. If they do occur, they will occur only occasionally and for a short period of time.

When operating in combustible dust environments, explosion-proof electric hoists are classified as Zone 21 or Zone 22 according to GB 12476.3-2007.

Note: Zone 21: Locations where combustible dust and air may be mixed. Zone 22: Locations where combustible dust is present only occasionally and for a short period of time.

Advantages of Explosion-proof Electric Hoists

1.Compact structure, small size, light weight, and large capacity.
2.Strong explosion-proof capabilities, high safety and reliability.
3.Exposed parts of the electric hoist are made of non-sparking materials, ensuring excellent explosion-proof performance and reliability.
4.The hoist offers a variety of configurations and specifications, suitable for a wide range of applications.
5.The modular design allows for universal and interchangeable parts, making hoist maintenance easy and convenient.

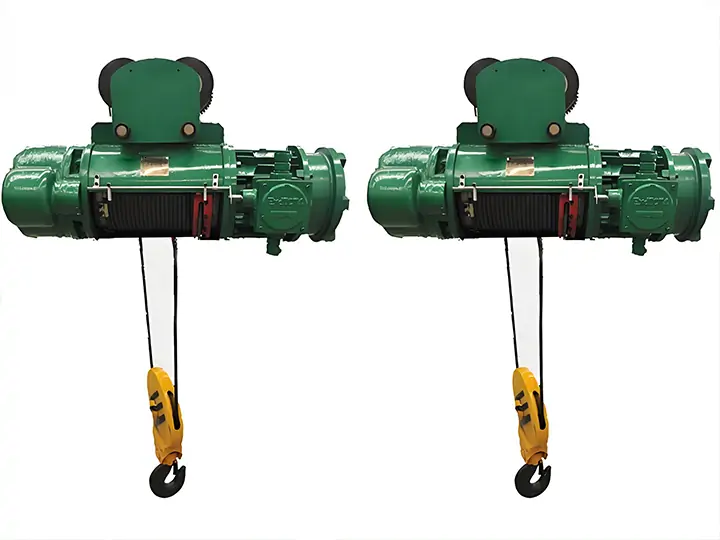

5 ton HB Model Explosion Proof Wire Rope Electric Hoist

Technical Specifications

Загвар	HB(ExdllBT4,ExdllCT4)
Lifting Weight(t)	0.25	0.5	1	2	3	5	10	16
Өргөх өндөр(м)	3~9	6~12	6~30	6~30	6~30	6~30	9~30	9~30
Lifting Speed(m/min)	8(0.8/8)						7(0.7/7)	3.5(0.35/3.5)
Running Speed(m/min)	20	20/30						18
Running Rail(m/min)	10-20b	16-28b	10-20b	20a-32c	10-20b	25a-50b	32b-50b	32b-63c
Working Level	М5
Хүч	3-phase AC380V 50Hz

Explosion-proof Certificate

Videos Show

China Explosion-proof Electric Hoist Manufacturer and Supplier

Weihua Crane Group's explosion-proof hoists have been successfully deployed on projects in over 30 countries, improving safety and efficiency in hazardous environments. We offer customized designs and 24-hour after-sales service to ensure your continued success. Contact us today to discuss your specific needs and learn how our solutions can improve your operational efficiency!
