A jib crane is a type of light crane designed for material handling. It features a horizontal jib or boom that supports a lifting device, typically a hoist, which travels along the arm. Jib cranes are ideal for repetitive and heavy lifting tasks in small workspaces, such as workshops, warehouses, loading docks, and production floors. This article will discuss what is a jib crane, its main components, types, uses, etc. Please click to read and contact us for customized solutions.

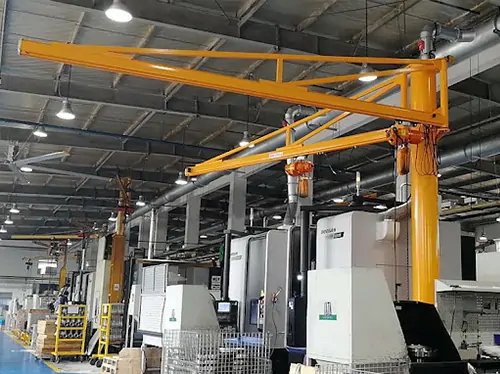

A jib crane is a light-duty lifting device consisting of a rotating horizontal arm (jib) mounted to a vertical support column or wall. The arm supports a hoist for lifting and moving loads within a defined arc. With space-saving design and ease of operation.
| Capacità di sollevamento | 0.5 ton ~ 10 tons |
| Rotation Angle | 180° (wall-mounted) to 360° (pillar-mounted) |
| Types Available | Floor-mounted, wall-mounted, wall-traveling, mast-type, and articulating jib cranes. |
| Uses | Ideal for workstation material handling, machine loading/unloading, and assembly operations. |
A jib crane is composed of several critical parts, each part playing a specific role in lifting and maneuvering loads safely and effectively. The following are the main jib crane parts and functions:
Column or Support Pillar: The vertical structure that supports the jib arm.
Jib Arm (Boom): The horizontal beam that holds the hoist and moves loads.
Hoist and Trolley: The lifting mechanism that travels along the jib arm.
Rotating Mechanism: Allows the arm to swing within the designated arc.
Electrical System: Includes the control panel and power supply system.
At Weihua, we offer custom jib crane design services to meet diverse operational needs. Whether you need a compact wall-mounted jib crane or a heavy-duty freestanding unit, our engineering team can deliver the optimal solution.
Load capacity calculation and structural analysis
Workspace layout and boom length optimization
Rotation angle and power system customization
Special material selection (e.g., corrosion-resistant, explosion-proof)
3D/ CAD drawings for review and approval
Need a reliable and efficient jib crane system? Contact us now for a free consultation and tailored proposal.
Below is a typical jib crane diagram to help you better understand its structure and component layout.
Weihua offers different types of jib cranes to suit different working environments and load requirements. Including various load capacities, rotation angles, and installation options.
| Tipo | Capacità di sollevamento | Rotation Angle | Features & Applications |
|---|---|---|---|
| Pillar-mounted Column Jib Crane | 0.5 ton –10 ton | Up to 360° | Independent structure, used in open spaces or beside machinery. |
| Wall-mounted Jib Crane | 0.5 ton –5 ton | Up to 180° | Space-saving, ideal for workshops or walls with load-bearing capacity. |
| Wall-traveling Jib Crane | 0.5 ton–2 ton | Linear track | Moves horizontally along a wall, suitable for long workstations. |
| Articulating Jib Crane | 0.25 ton–2 ton | 200–360° | Flexible movement, bypasses obstructions, perfect for tight spaces. |
Jib cranes are used in a variety of industries for efficient and precise material handling. Here are some of the most common applications:
Produzione: Loading/unloading components, moving materials on production lines.
Warehousing & Logistics: Pallet handling, packaging support.
Machinery Workshops: Assisting with equipment assembly or repairs.
Shipyards & Docks: Localized cargo lifting and transfer.
Construction: Lifting building materials in constrained job sites.
Automotive: Engine assembly, vehicle component handling.
Food & Pharma: Cleanroom-compatible versions for hygiene-sensitive environments.
In summary, jib cranes offer a compact, efficient, and versatile solution for localized lifting tasks across various industries. Understanding the jib crane parts, types, and applications can help you choose the right model for your needs.
At Weihua, we support fully customized jib crane systems tailored to your workflow, load specifications, and installation environment.
Ready to get started? Contact us today to request a free consultation and design quote.
