2 Ton Electric Chain Hoist

Product Description

The 2-ton electric chain hoist is a lightweight lifting device with a compact structure and is easy to install and operate. It can be used in conjunction with overhead cranes, gantry cranes and jib cranes to improve material handling efficiency. It is particularly suitable for low buildings or places that require temporary expansion of lifting space, such as temporary factories.

Weihua's 2-ton electric chain hoist utilizes imported low-noise chains, motors, brakes, and safe, reliable clutches from Germany. Developed to DIN standards, the chain hoist's reducer housing is die-cast aluminum alloy, resulting in a lightweight, compact, and durable structure. All internal gears are high-temperature quenched for enhanced wear resistance and toughness. Combined with leading-edge international manufacturing processes, this hoist ensures high gear meshing precision, stable operation, and a long service life.

Estructura

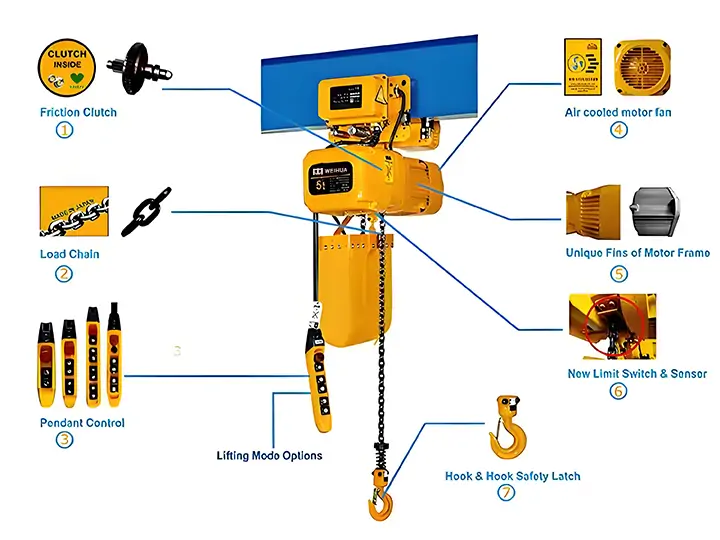

An electric chain hoist primarily consists of core components such as a motor, reducer, brake, lifting chain, and hook.

The motor, as the power source, converts electrical energy into mechanical energy to drive the equipment.

The reducer converts the motor's high-speed rotation into low-speed, high-torque output, enabling the lifting chain to smoothly and accurately lift or lower cargo.

The brake acts as a safety control, ensuring smooth and safe lifting and lowering of cargo through real-time speed adjustment or emergency braking.

The lifting chain and sprocket work together through meshing transmission to achieve cargo lifting and lowering operations.

Características

• High-Strength, Lightweight Design: The electric chain hoist utilizes a high-strength tensile or die-cast aluminum housing, manufactured using a thin-wall extrusion process. This results in a compact size, light weight, and excellent heat dissipation, effectively extending the motor's lifespan.
• Independent Gearbox System: The independent sealed gearbox system features a built-in two-stage coaxial transmission gear mechanism and a long-lasting oil bath lubrication system, ensuring smooth transmission, low noise, and minimal maintenance.
• Modular Design: The simple, modular design of the entire unit allows for easy disassembly, inspection, and maintenance, reducing maintenance effort and time.

Aplicaciones

Warehouse logistics and terminal operations: Primarily used in warehouses, logistics centers, and docks, they enable quick and safe cargo handling to improve material handling efficiency.

 Construction sites and heavy equipment installation: Used for lifting construction materials, equipment, and prefabricated components.

Automotive industry and production line assembly: Precision lifting of heavy components such as engines and chassis.

Electric Chain Hoist Specifications

Note: Custom designs available.

2 Ton Electric Chain Hoist Manufacturer and Supplier

Weihua is an electric hoist manufacturer and supplier, offering customized electric chain hoist solutions tailored to specific customer needs, including specialized lifting capacities, speed control modes, and mounting configurations. We offer electric chain hoists, single- and two-speed wire rope hoists, European-style electric hoists, and explosion-proof electric hoists. If you are interested in a 2-ton electric chain hoist, please contact us for solutions and a quote.
